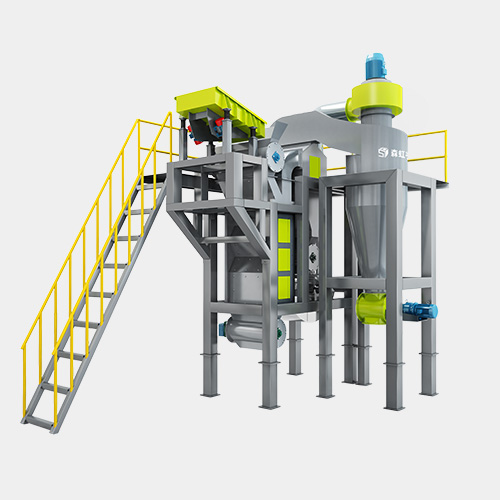

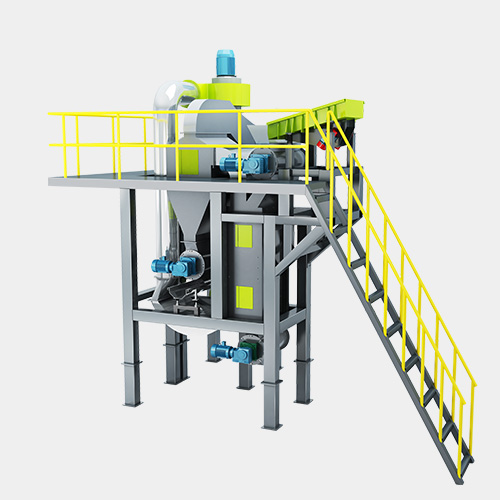

Airflow Sorting Machine

The All Metal Sorting Machine, also known as stainless steel sorting machine, sensing metal sorting machine, or air knife sorting machine, employs highly sensitive multi-sensor technology to accurately identify and detect metals in various materials. Through the formation of an air knife via pneumatic nozzles, it generates an impact force that changes the movement trajectory of metals, effectively separating them from non-metals. This advanced equipment handles materials ranging from 3-150mm with a sorting accuracy exceeding 98%, making it ideal for comprehensive metal recovery in recycling operations.

Advanced Metal Sorting Technology

The All Metal Sorting Machine employs highly sensitive multi-sensor technology to accurately identify and detect metals in various materials. Through pneumatic nozzles, it creates an air knife that impacts metals, changing their trajectory to separate them from non-metals.

Key Features

Multi-Sensor Technology: Enhances metal induction and significantly improves sorting accuracy
Optimized Sorting Mode: Improves accuracy for strip metal, enabling separation of stainless steel and wires
Real-Time Monitoring: Online monitoring of device operation data and remote software updates
PLC Control System: Independently developed with intelligent touch panel for convenient operation
Variable Frequency Control: Adjustable belt speed and baffle clearance for different materials
Modular Design: Easy maintenance and installation with high automation for continuous sorting

Applications

Mainly used to separate ferrous metals (such as stainless steel) and non-ferrous metals from crushed materials, including:

Automobile crushing materials
Home appliance crushing mixtures
Paper mill crushing materials
Electronic waste crushing materials

Technical Excellence

Capable of sorting materials ranging from 3-150mm with a sorting accuracy over 98%, this machine is designed for efficient and reliable metal recovery in recycling operations.
